Orchestration SDKs

Step 3. Configure connection properties

PingOne JavaScript

In this step, you configure the sample application to connect to your PingOne Protect instance and start DaVinci flows.

Optionally, you can configure the API backend application, so you can create and modify the todo items. The API backend app demonstrates introspecting the access tokens issued to the client application, and granting or refusing access to the todo items based on the response.

Configuring the sample client app

In this step, you configure the sample app to connect to the authentication flow you created when setting up your server configuration.

  1. Copy the .env.example file in the sdk-sample-apps/javascript/reactjs-todo-davinci folder and save it with the name .env within this same directory.

  2. Open the .env file and edit the property values to match the settings you configured in previous steps:

    WELLKNOWN_URL=
WEB_OAUTH_CLIENT=
API_URL=http://localhost:9443
DEBUGGER_OFF=true
DEVELOPMENT=true
PORT=8443
SCOPE='openid profile email phone name revoke'

# INIT_PROTECT (optional) - bootstrap | flow
# 'bootstrap' will initialize protect at app bootstrap time
# 'flow' relies on the PingOne Protect collector for initialization
INIT_PROTECT=
# PINGONE_ENV_ID - required when ProtectCollector is present
PINGONE_ENV_ID=
    WELLKNOWN_URL

    Enter the OIDC Discovery Endpoint value from the client you are connecting to in PingOne.

    Example:

    WELLKNOWN_URL = https://auth.pingone.ca/3072206d-c6ce-ch15-m0nd-f87e972c7cc3/as/.well-known/openid-configuration

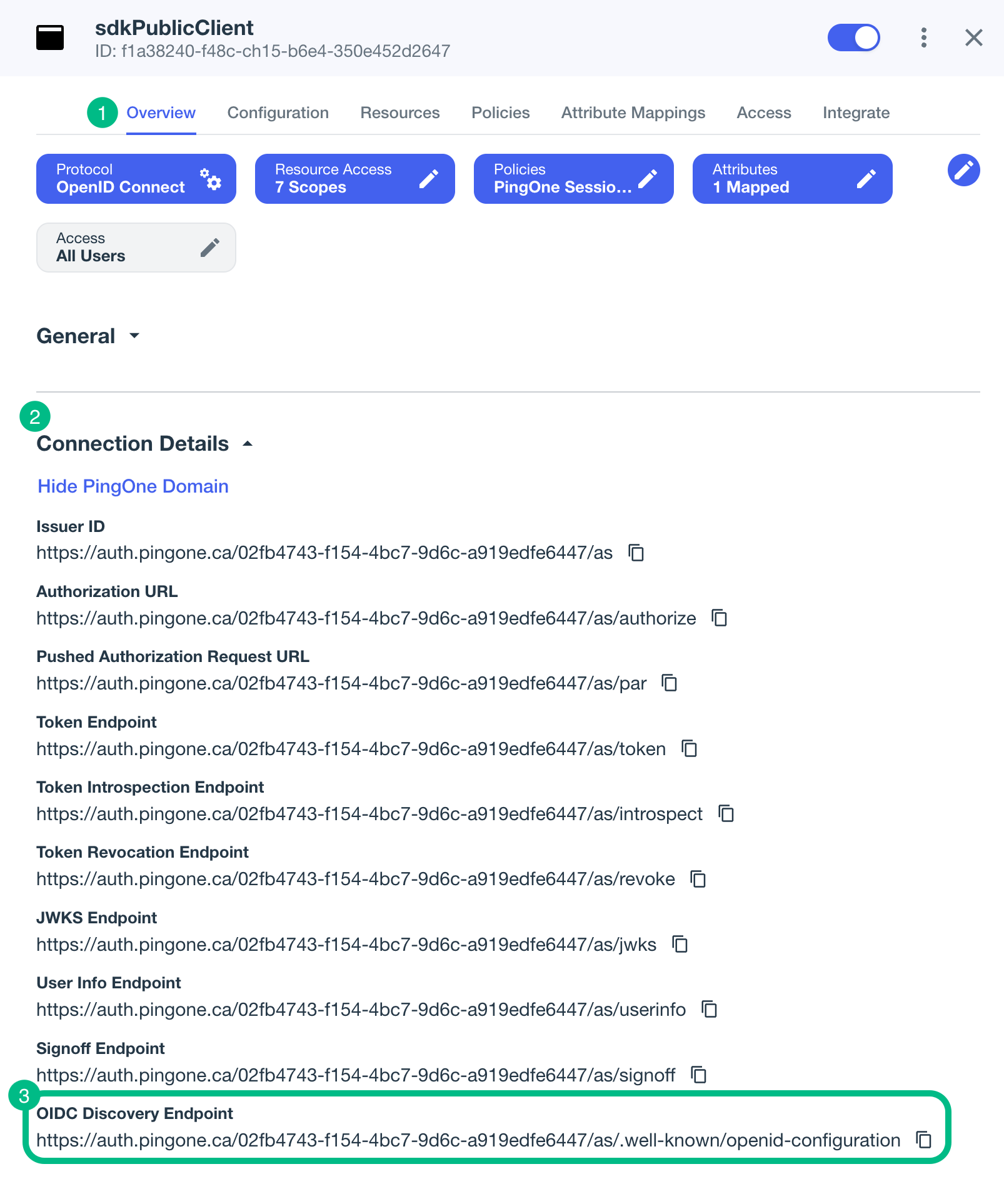

    How do I find my PingOne .well-known URL?

    To find the .well-known endpoint for an OAuth 2.0 client in PingOne:

    1. Log in to your PingOne administration console.

    2. Go to Applications > Applications, and then select your OAuth 2.0 client.

      For example, sdkPublicClient.

    3. On the Overview tab, expand the Connection Details section, and then copy the OIDC Discovery Endpoint value.

      Locating the .well-known URL in a PingOne client profile.
    WEB_OAUTH_CLIENT

    Enter the ID of the client you are connecting to in PingOne.

    Example:

    WEB_OAUTH_CLIENT=6c7eb89a-66e9-ab12-cd34-eeaf795650b2

    API_URL

    Optionally, enter the URL and port number on which you are running the API backend server.

    For example, http://localhost:9443

    The backend API sample is not required to test authentication with this app.
    PORT

    Enter the port number on which to run the sample app.

    For example, 8443

    SCOPE

    Enter the scopes you want to assign users who complete authentication using the client, separated by spaces.

    Example:

    SCOPE='openid profile email phone revoke'

    INIT_PROTECT

    The client app supports PingOne Protect risk evaluations.

    To enable risk evaluations, specify one of the following options:

    bootstrap

    The client app manually initializes the PingOne Protect SDK during startup.

    flow

    The client app initializes the PingOne Protect SDK only when encountering the respective collector in the DaVinci flow.

    Leave this blank if you do not want to use PingOne Protect in the client app.

    PINGONE_ENV_ID

    The PingOne environment identifier.

    For example, 3072206d-c6ce-ch15-m0nd-f87e972c7cc3

    This property is only required if you want to use PingOne Protect in the client application, and have set a value in the INIT_PROTECT property.

    Otherwise, leave this property empty.

    The result resembles the following:

    WELLKNOWN_URL=https://auth.pingone.ca/3072206d-c6ce-ch15-m0nd-f87e972c7cc3/as/.well-known/openid-configuration
WEB_OAUTH_CLIENT=6c7eb89a-66e9-ab12-cd34-eeaf795650b2
API_URL=http://localhost:9443
DEBUGGER_OFF=true
DEVELOPMENT=true
PORT=8443
SCOPE='openid profile email phone revoke'

# INIT_PROTECT (optional) - bootstrap | flow
# 'bootstrap' will initialize protect at app bootstrap time
# 'flow' relies on the PingOne Protect collector for initialization
INIT_PROTECT=bootstrap
# PINGONE_ENV_ID - required when ProtectCollector is present
PINGONE_ENV_ID=3072206d-c6ce-ch15-m0nd-f87e972c7cc3

Configuring the sample backend API app (optional)

This optional step configures a simple Node.js server app that provides create, read, update, and delete (CRUD) operations for the todo items.

The backend API app requires access to the same public client that you create earlier, so that it can introspect tokens issued by it.

To configure the backend API app:

  1. In the IDE of your choice, open the sdk-sample-apps folder you cloned previously.

  2. Copy the .env.example file in the sdk-sample-apps/javascript/todo-api folder and save it with the name .env within this same directory.

    The file contains configuration to connect to the same public OAuth 2.0 client as the TODO app itself:

    Example default API server sdk-sample-apps/javascript/todo-api/.env file
    # 'AIC' or 'PINGONE'
SERVER_TYPE=
# AM URL for AIC or PingOne base URL with env ID for PingOne
SERVER_URL=
PORT=
# 'alpha' or 'bravo' for AIC server type. Not used for PingOne.
REALM_PATH=
# Confidential client ID for AIC or WebApp public client ID for PingOne
REST_OAUTH_CLIENT=
# Confidential client secret for AIC. Not used for PingOne.
REST_OAUTH_SECRET=

  3. Update the configuration block with the details of your server environment.

    SERVER_TYPE

    Ensures the sample app uses the correct behavior for the different servers it supports, for example the endpoint to use for introspecting tokens received from the client app.

    For PingOne tenants, specify PINGONE.

    SERVER_URL

    The URL of the authorization server to connect to. Enter the base URL of the authentication endpoint for your PingOne instance, followed by the environment ID.

    For example, in the Canada region, your server URL value might be https://auth.pingone.ca/3072206d-c6ce-ch15-m0nd-f87e972c7cc3

    Do not use the console URL (https://console.pingone.ca) or app URL (https://apps.pingone.ca) for this property.
    PORT

    The port number on which to run the TODO API server.

    You’ll need this port number when configuring the client app to connect to the TODO API server.

    If not specified, the TODO API server defaults to running on port 9443

    REALM_PATH

    This value is not required for PingOne servers.

    REST_OAUTH_CLIENT

    Enter the ID of the same public client you used for the client application earlier.

    For example, 6c7eb89a-66e9-ab12-cd34-eeaf795650b2

    REST_OAUTH_SECRET

    This value is not required for PingOne servers.

    The result will resemble the following:

    Example completed API server sdk-sample-apps/javascript/todo-api/.env file
    # 'AIC' or 'PINGONE'
SERVER_TYPE=PINGONE
# AM URL for AIC or PingOne base URL with env ID for PingOne
SERVER_URL=https://auth.pingone.ca/3072206d-c6ce-ch15-m0nd-f87e972c7cc3
PORT=9443
# 'alpha' or 'bravo' for AIC server type. Not used for PingOne.
REALM_PATH=
# Confidential client ID for AIC or WebApp public client ID for PingOne
REST_OAUTH_CLIENT=6c7eb89a-66e9-ab12-cd34-eeaf795650b2
# Confidential client secret for AIC. Not used for PingOne.
REST_OAUTH_SECRET=

  4. Save your changes.
